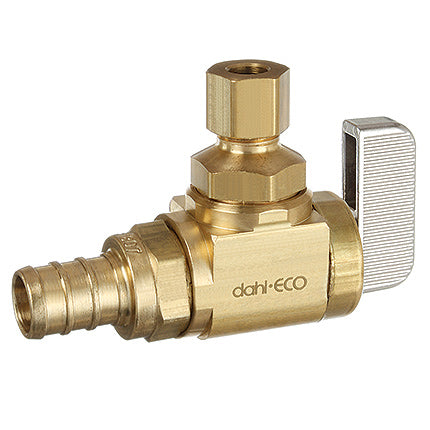

Dahl Angle Valve Rough Brass

Description 1/2 Crimpex X 1/4 OD Comp, Angle, Rough Brass

Product Type Supply Stop

Inlet Pipe Type PEX

Outlet Pipe Type Copper

Every valve is tested before leaving our factory.

They may build them with something else, but they fix them with these.

Specifications

Material  Lead-Free Brass

Inlet Size  1/2

Pattern Angle

Inlet Connection PEX Crimp

Finish Rough Brass

Operation Plated Handle

Outlet Size 1/8

Inlet PX3

Outlet Connection 1/4 OD Comp

Outlet 30

Box / Case 24 / 144

Instructions
Turn off water supply. Install product. Turn on water supply, check for leaks. dahl assumes no responsibility for failure due to improper installation. Abide by local plumbing codes. Do not expose to corrosive agents.

CRIMPEX (Crimp for PEX): Follow tube manufacturer’s instructions. Warning: Do not attempt to use PEX connections with Poly-B tubing or vice versa.

COMPRESSION ON COPPER PIPE: Do not use pipe dope or PTFE tape. Pipe must be clean, de-burred, round, & cut square. Slide nut, then ring, then valve onto pipe. Tighten firmly with small wrench. DO NOT OVER-TIGHTEN. Compression on plastic tube: Follow tube manufacturer’s instructions; Special ring, nut, or insert may be required.
